Simply making meetings better.
PLUS has been a leader and innovator in COPYBOARDs market ever since it introduced the world’s first copyboard in 1984. Many advances have been made over the years, but the basic philosophy has remained the same: Keep it simple! PLUS Copyboards require little or no training. Most of the board’s functions are accomplished with the push of a button.
Such Simple Operation brings dramatic results to Meetings.
- When PLUS CaptureBoards are used, presentations can be prepared beforehand in PowerPoint slide where later you can enter your hand-written modifications to them while brainstorming.
- Meeting attendees can easily contribute to the process by adding their own comments to the presentation on board.
- Meeting attendees can give their full attention to the presentation since it is no longer necessary to take notes.
- When the meeting is over, you can be confident that everyone understands the material since they have exact copies of what was written on the board.
Store your Work DIGITALLY
With digital storage functionality, the PLUS C-20 Series expands organization-wide communication. The C-20 Series allows you to store and retrieve the data from the board through a Direct PC USB Connection. Images are saved in color as JPG, PNG, or PDF files. Once the image data has been downloaded to your computer, you can utilize it in many useful ways:
- Keep high-resolution Documentation of meeting minutes records for future reference.
- Easily distribute exact copies of your work via email. Send it to absent audience members!.
- You can Edit the images, paste them into office documents and web pages, or attach them to e-mails.
- Digital image files are a space-saving and “green” way to store your notes from meetings and presentations.
- By e-mailing the files you can easily share your notes and ideas with anyone and everyone.
Store your Work in PAPER COPIES
- With plain paper copies you can easily present your audience with on-the-fly copies of what has been written on the board.
- Conveniently store paper copies for future reference. Color prints are great for contrast and clarity, while black-and-white prints are quick and economical.
- Be assured of consistency and accuracy when everyone possesses an exact duplicate of what was written on the board.
- Maintain consistency by preventing errors or omissions in drawings, charts, and diagrams.
- Listeners can commit their attention to the presentation; not to taking notes.

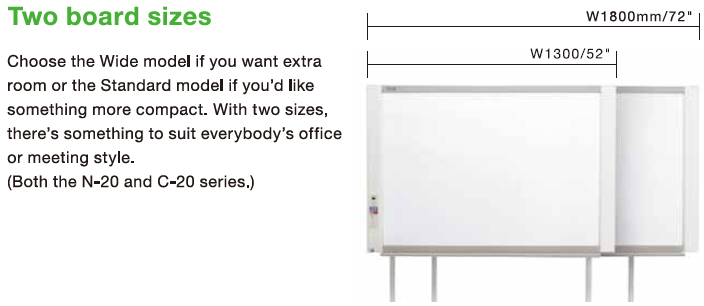

The Wide & Standard models of the new PLUS CaptureBoardsTM has two writing panels, network functionality and possesses a clean design that compliments any office space.
BEYOND THE WHITEBOARD

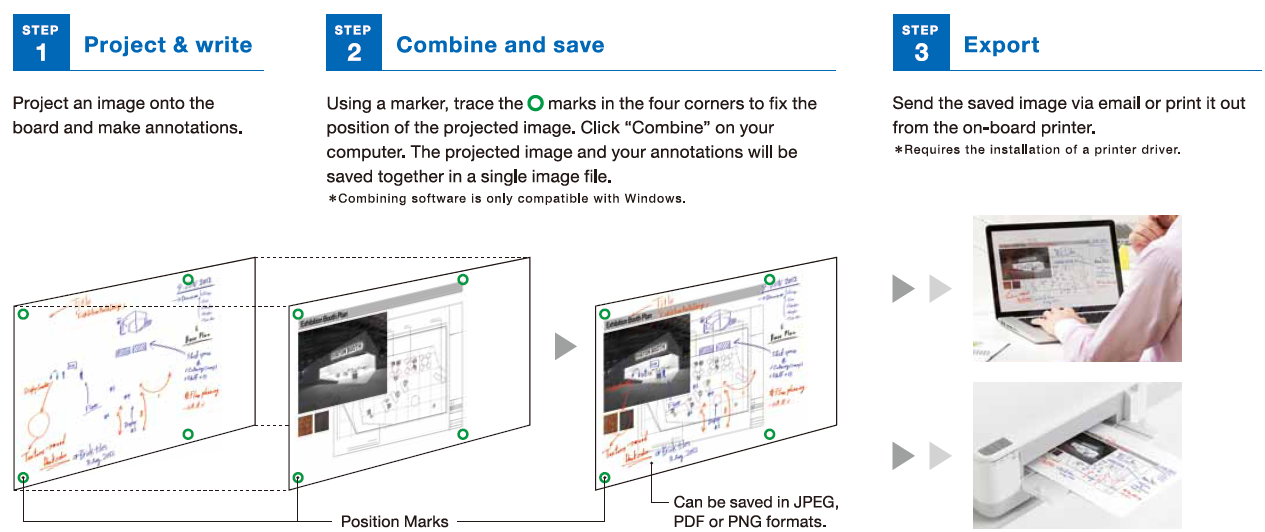

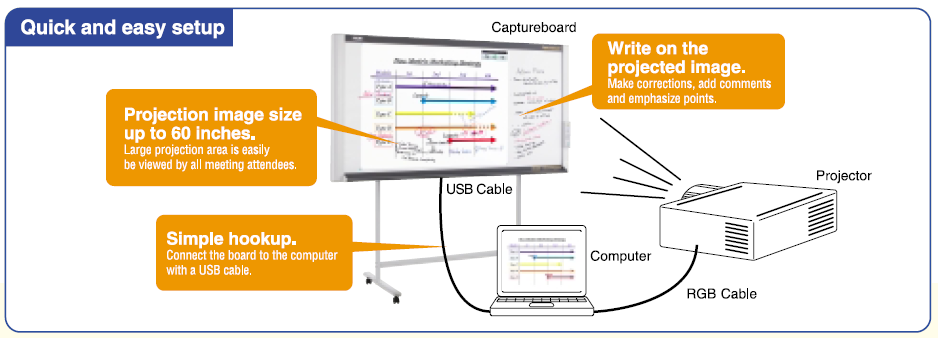

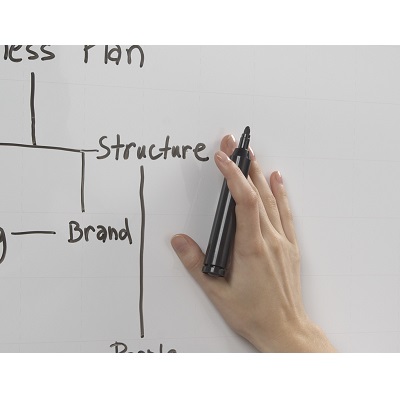

- Just like you would do on a whiteboard, you write directly on the panel surface of the CapturboardTM, make modifications on the projected image, add notes, draw diagrams, brainstorm.
- Unlike when using a whiteboard, with a CapturboardTM you are able to retain your work even with the projected image from a digital projector along with annotations made on it.
- You have the option of printing or electronically storing what has been projected and written on the board.
- Or you can simply push a button to have the board scroll to a clean panel, allowing you to continue writing without losing your current work or your train of thought!
PLUS C-20W Network CaptureBoardTM

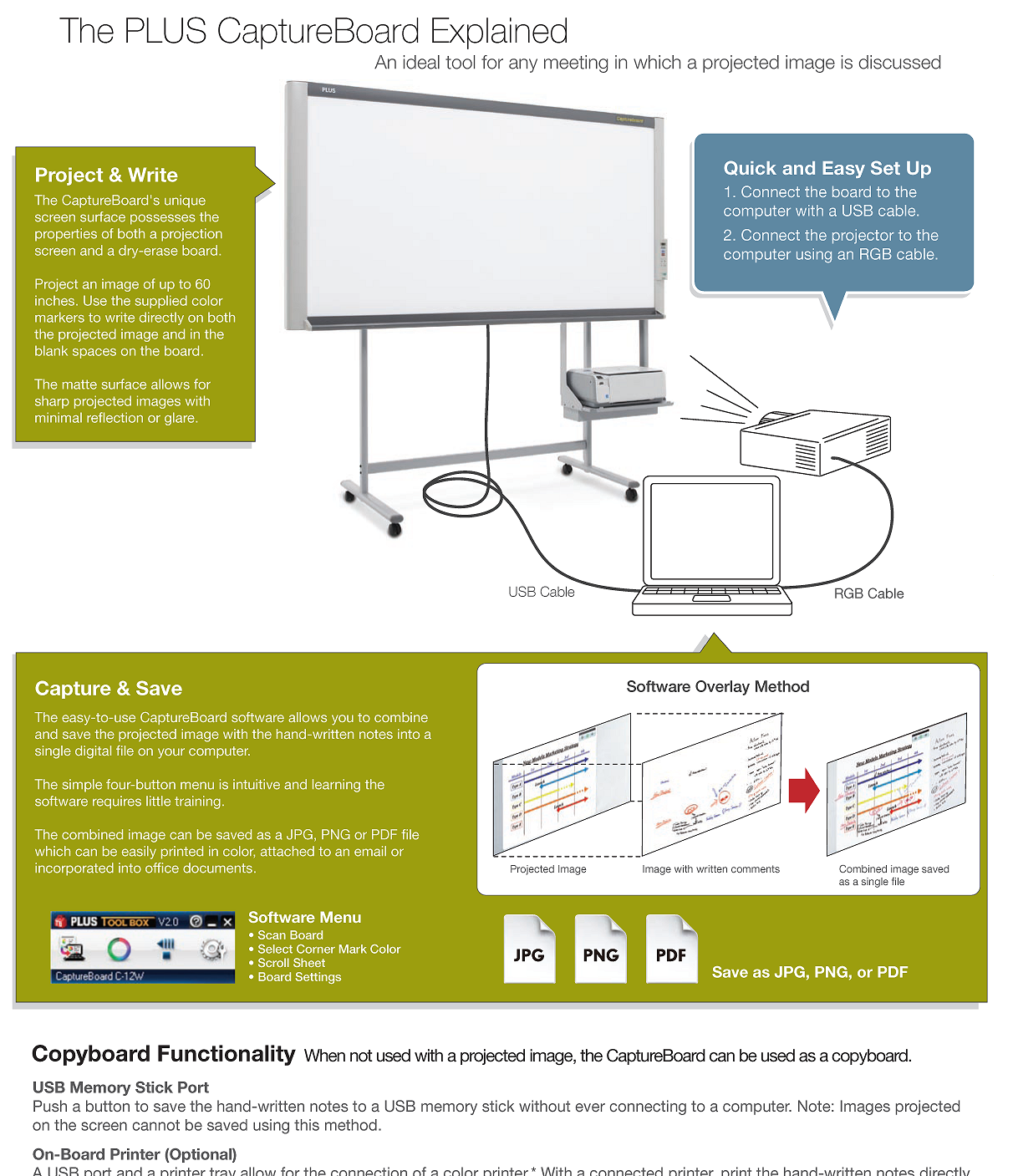

PLUS Electronic CaptureBoardTM is a digital whiteboard that works with usual erasable markers - Four Colors (Red, Green, Blue and Black) with the ability to capture projected image from a digital projector with added hand-written notes and annotations that is written on the projected screen for instantaneous printing or digitally saving. With the ability to both Print and Save to a single file on a computer makes the unit especially useful for business meetings, engaging students and colleagues in a variety of instructional applications, including training rooms and classrooms. PLUS CaptureBoardsTM are designed from the ground up for ease-of-use, making it a breeze to setup and simple to operate.
The PLUS C-20 Network Electronic CaptureBoardTM comes as a path breaking solution to break the boredom of conventional working style. Designed to offer an exceptional ability of storing your work digitally, C-20 series CapturboardsTM can easily save important notes in colored as well as monochrome formats and print them for future reference. Featuring two writing panels in its design, featuring a lightweight design that can be easily mounted on any wall or partition and is highly portable too.
PLUS C-20 series CaptureBoards are integrated with an advanced network and smartphone functions allowing users to save their notes to various destinations so that information can be accessed from almost anywhere. Moreover, notes can also be saved to a USB memory stick or printed out from an on-board printer (optional). Using the PLUS "MTG pocket app" on a compatible smartphone allows users to operate and save notes directly to their phone.

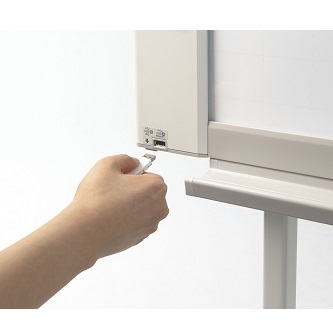

With a front loading USB memory port, PLUS C-20 CaptureBoardsTM also offers high network assistance to use office applications smoothly for its benefit. Numerous LED indicators and a motorized page drive also find a vital place in the engineering of PLUS C-20 Electronic CaptureBoardsTM to work brilliantly with its multiple capturing functions.
Store Work Digitally
Store and retrieve the data from the board through either a direct PC connection, or by using a USB memory stick. Images are saved in color as JPG, PNG, or PDF files. Once the image data has been downloaded to your computer, you can distribute copies of work using email and send to absent audience members, insert board writing into business documents, edit and enhance your work using software, and reduce clutter with compact digital files.
PDF, JPG and PNG Support
With a USB Memory Stick inserted, simply press the “SAVE” button. The writing surface is scanned and your work is saved as image data. Choose between PDF, JPG and PNG file formats for saving your data at 300 DPI resolution. Digital copies save money and paper. When the meeting has concluded, you can email the notes to the meeting participants and to colleagues that were not present! Save image files to USB memory or a PC in either PDF, JPG or PNG formats.

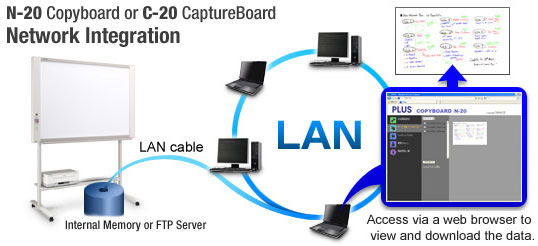

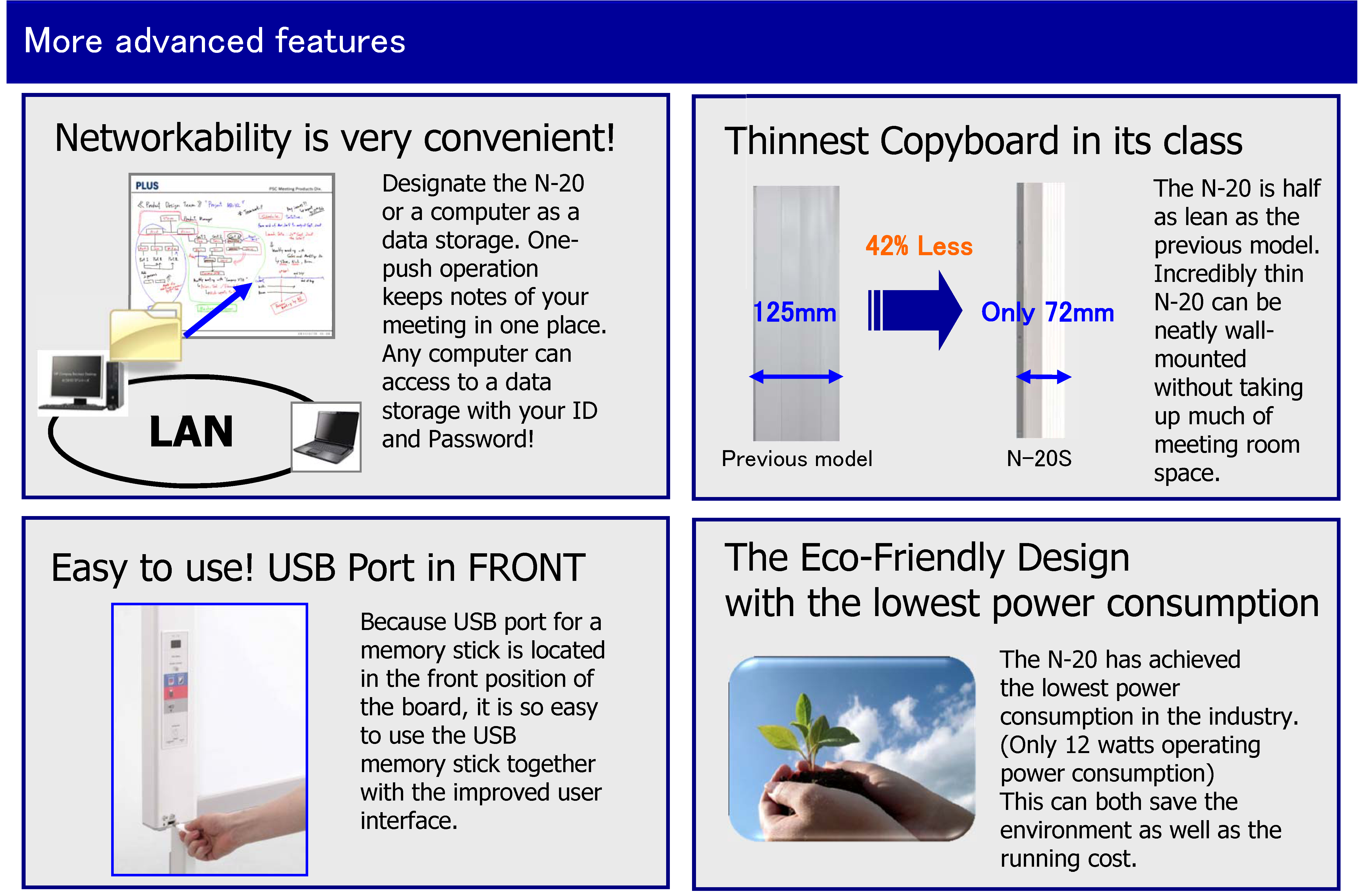

Network Function

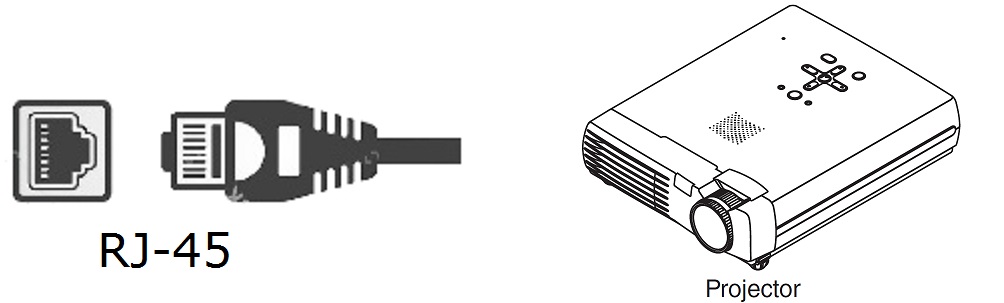

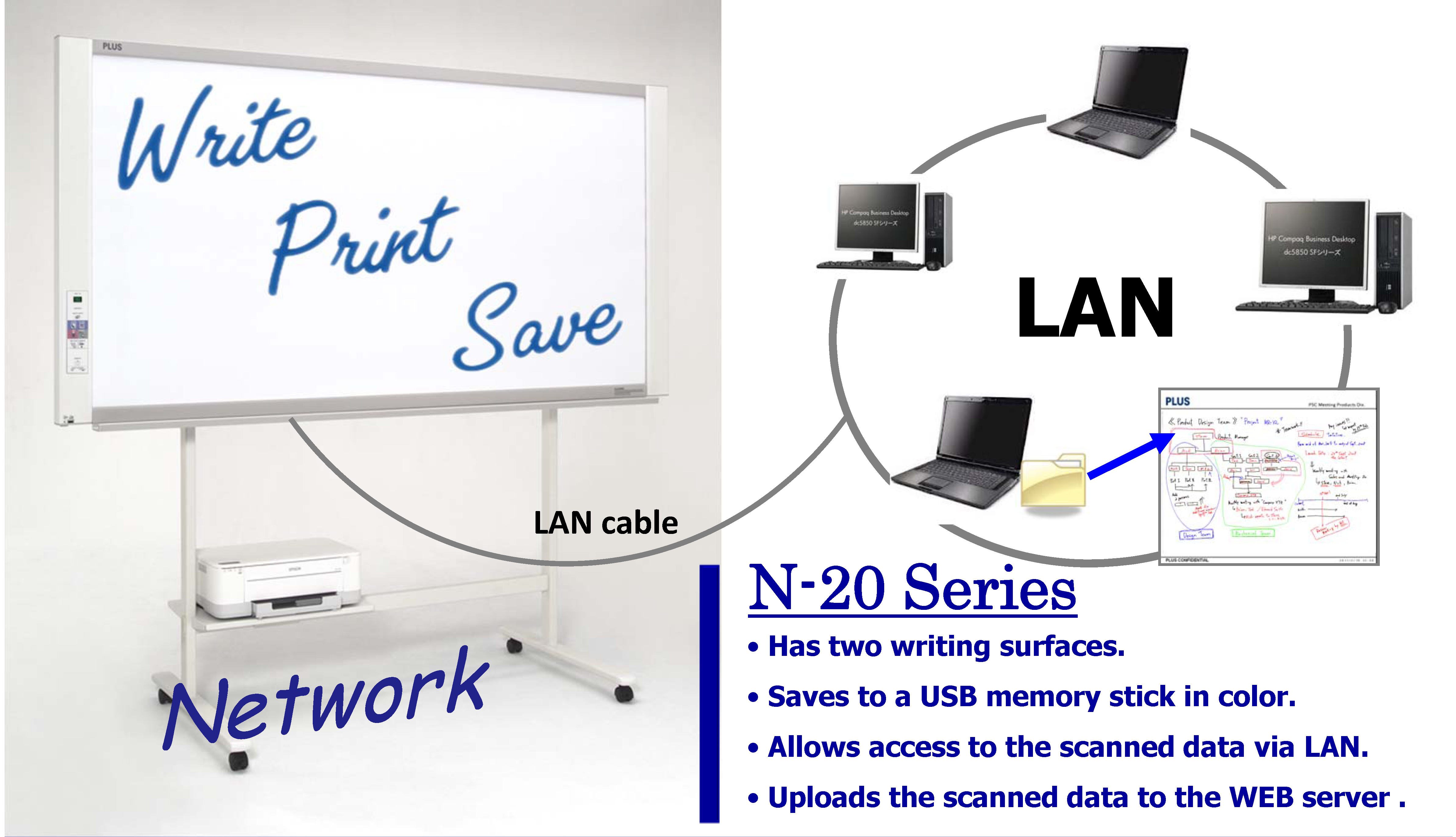

Connect the C-20W to your network to save and share work over that network via ethernet cable or by connecting it to a regular wireless router. You'll have two options for saving and sharing your work over the network. First, you can save to an FTP server when connected so that everyone on your team has access to the saved information or you can save your copyboard data to the board's internal memory - Approximately 100 pages can be stored. Using an assigned IP address, your team can access the saved information on the board from their computers or smartphones using a web browser. The data on the board is accessible in standby mode as well. You can benefit from the added SECURITY measure of Password protection the board.
Integrated Software

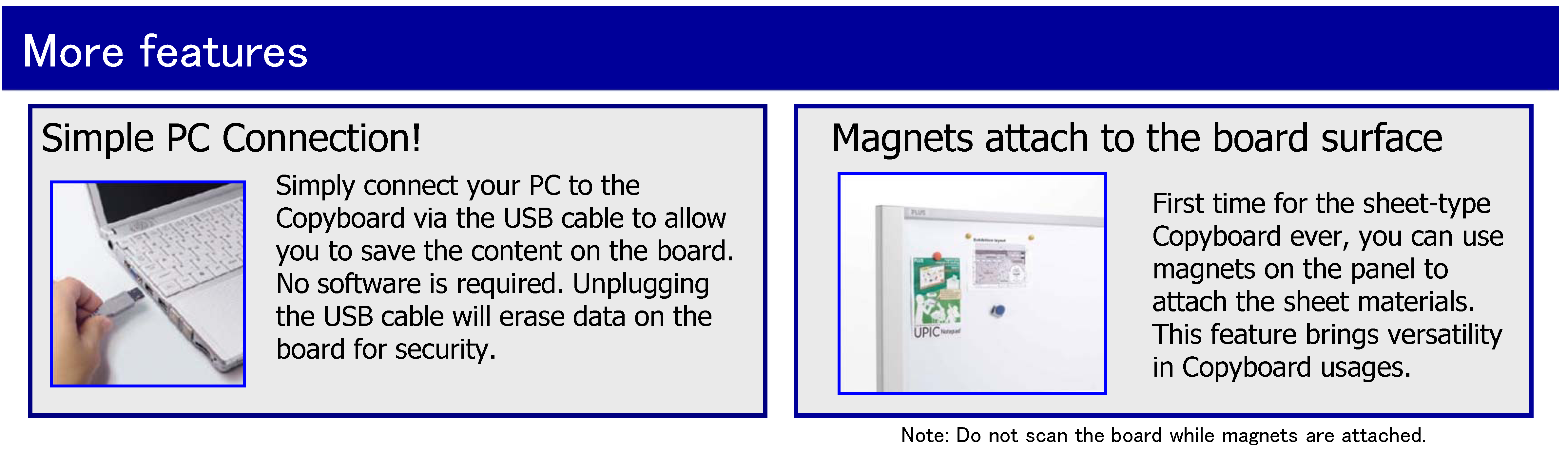

No need to install software, simply connect your computer - both (Mac or PC) are compatible - to the board using a USB cable whenever you want to save the information image.
Two Panels of Writing Space

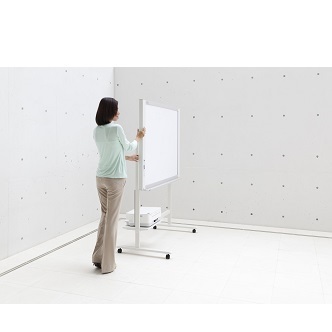

You'll have two panels of writing space at your disposal; simply move the sheet forward or backward electronically or with a touch of your hand. The surface of the N-20 Series boards are easy to move when using just your hand. The scrolling force needed has been reduced to 7 oz (0.2kg) - a vast improvement compared to the previous model's 3 lbs (1.4kg).

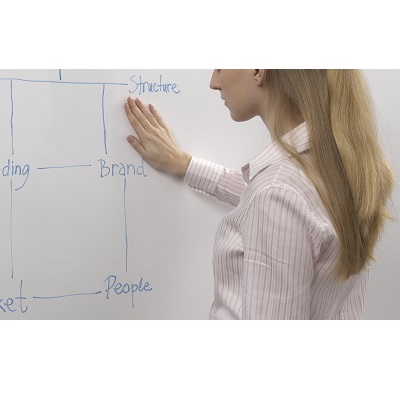

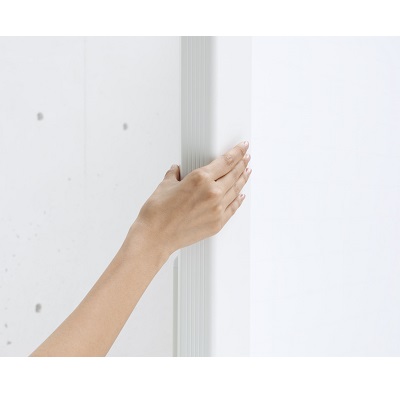

Smooth Hand Scrolling & Fast Scanning
The C-20W has two additional updates from the previous model that allow for a better user experience. First, the surface of this board is easy to move when using your hand; the scrolling force needed has been reduced to just 7 ounces. Additionally, the board scans in just 21 seconds; also an improvement over the previous model.

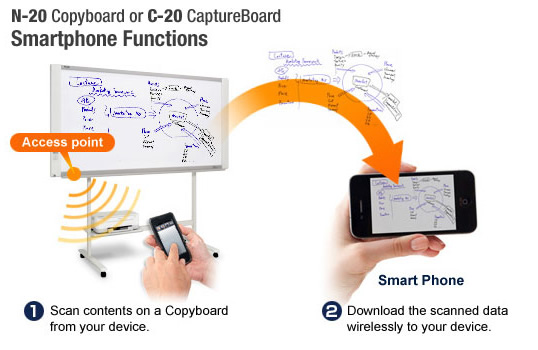

Mobile App (iOS/Android)
The MTG pocket App lets you perform the "SCAN" function of the board from your SmartPhone. The resulting image file can then be previewed and saved to your phone's memory − as well as to the memory of phones belonging to anyone present in the meeting who has the MTG pocket App installed! Furthermore, the MTG pocket App lets you record audio and video during the meeting. The audio and video files are organised in the same folder as the board image files, so that all of the meeting data is in one convenient location. Note: Using the MTG pocket App requires the connection of a "wireless access point" to the board as well as a compatible phone. Compatible with Apple iOS 4 and above and Android 2.3 and above.
<<< Click on either software platform to download.

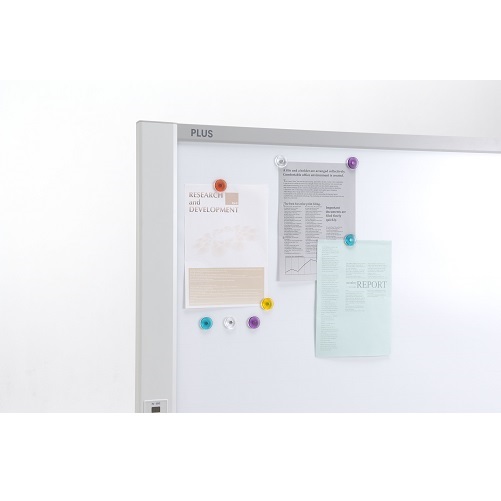

Magnetic Board Surface
Magnets can be attached to the board surface, making it easy to tack up drawings, diagrams, and other items that could enhance your presentations.

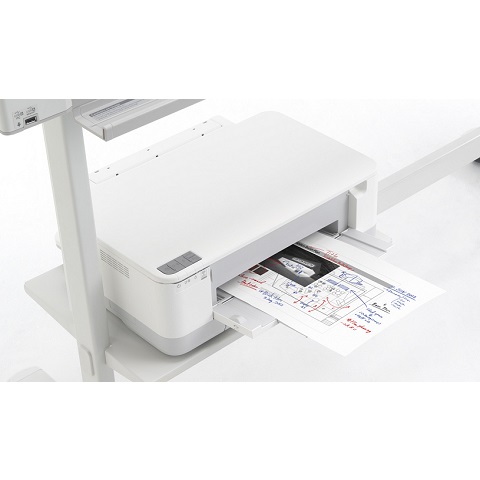

Print Work in Color

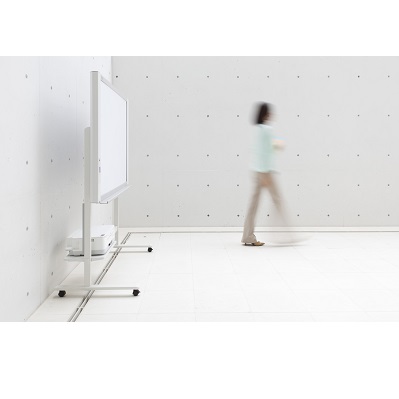

Print the contents of the board in color using a compatible inkjet printer. You can use the printer in either the copyboard's wall-mounted or floor-standing configuration. By using plain paper copies, you can present your audience with a copy of what's written on the board. Listeners can commit their attention to the presentation rather than taking notes and maintain consistency by preventing errors or omissions in drawings, charts and diagrams. Additionally, it's handy to have paper copies on hand to refer to later.

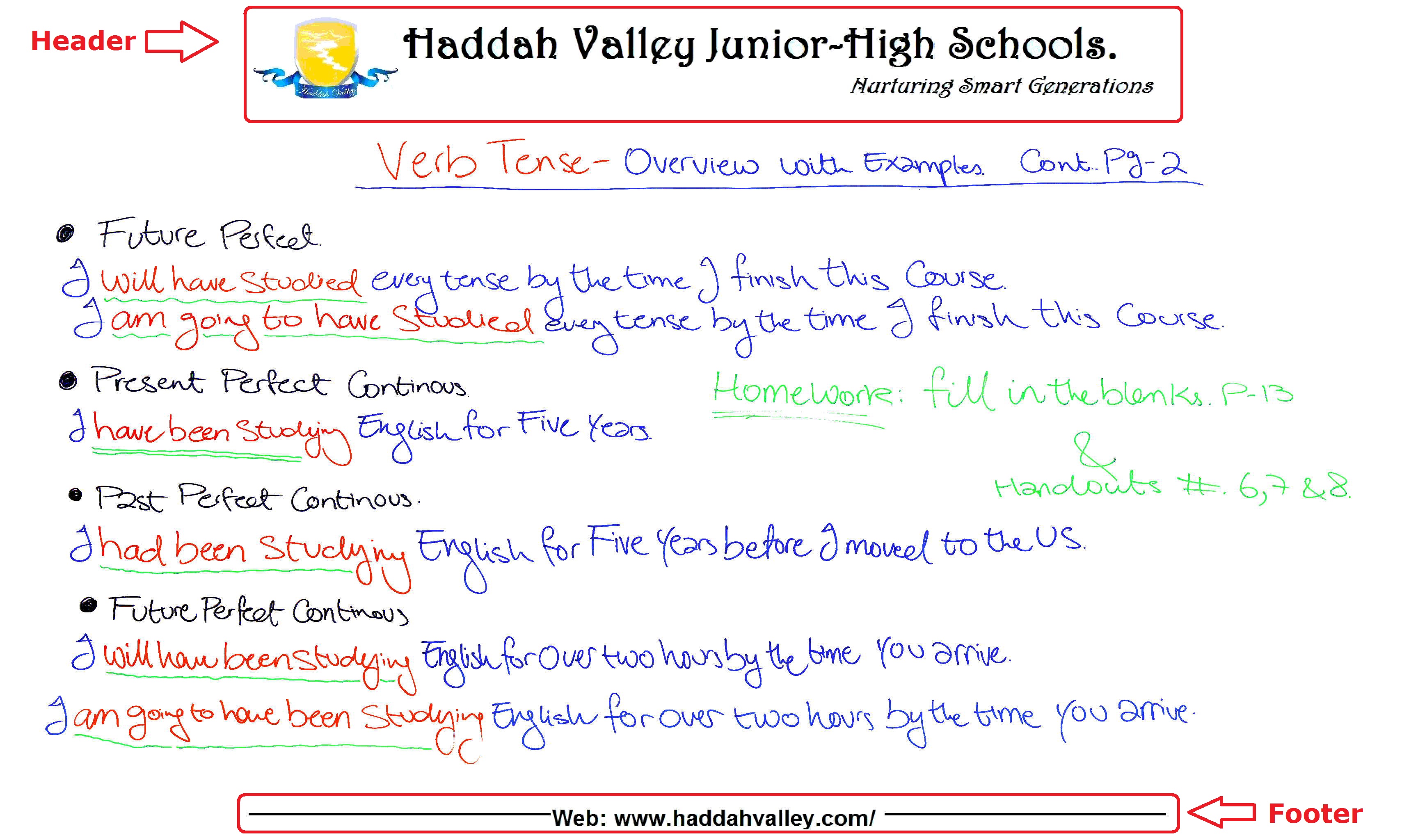

Add Company's Header & Footer
Header/Footer Function, this feature automatically adds company logos and identifiers to the printed or saved documents. Doing so helps keep meeting records organized and extends the utility of the documents.

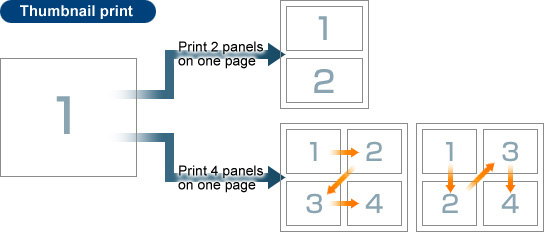

<<< Click on Thumbnail Image to check a saved sample.
Low Power, Saves Energy
The Eco-Friendly Design with the lowest power consumption. The N-20 has achieved the lowest power consumption in the industry. (Only 12 watts during operating and 3 watts on standby) This can both save the environment as well as the running cost.
Disable Color Printing
You can disable color printing mode if black and white only is preferred.
Extensive GUARANTEE
Provision of spare parts and servicing from date of purchase.
| Panel Size | W 1800 mm x H 910 mm |
| Active Screen Area | W 1780 mm x H 900 mm |
| Panels | 2 |
| Grid | None |
| Sheet Drive Method | Motorized / manual |
| Scanning Method | CIS (Contact Image Sensor) |
| Paper Size | A4-size (210x297mm) / Letter-size (8.5" x 11") Plain Paper |
| Ports | 3 x USB (type B for PC and type A for printer and USB flash memory) 1 x RJ45 (10Base-T/100Base-TX) |
| File Format | PDF, PNG, JPEG |
| Printing Resolution | 300 dpi or equivalent |
| Colors | Color / Monochrome |
| Compatible FAT Types | FAT 16, 32 |
| Network Connection : Method | Wired LAN |
| Network Connection : Interface | RJ45 |
| Network Connection : Category | 10/100 Base-TX |
| Network Connection : Protocol | TCP/IP |
| Software Requirements | OS: Web browser: Windows: Internet Explorer 6.0 or Later Macintosh: Safari 4 or Later |
| Power Supply | AC power adapter: Input: AC 100-240V/50-60 Hz, Max 0.75 A Output: DC 12 V, 3.0 A Power consumption: In standby: 3W During operation: 12W (not including printer) |
| Temperature | 50 to 95° F (10 to 35° C) |
| Humidity | 30 ~ 85% (with no condensation) |
| Dimensions | 78 x 3.5 x 39.4" (1980 x 89 x 1000 mm) (WxDxH) (without marker tray) |
| Weight | 55 lb (25 kg) |

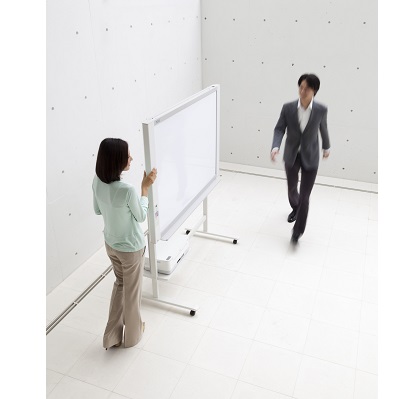

Optional Mobile Stand with Printer Tray

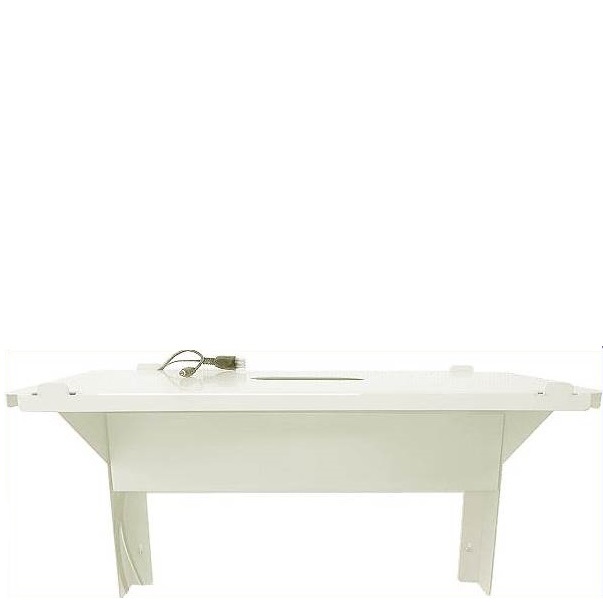

Optional wall mount printer tray

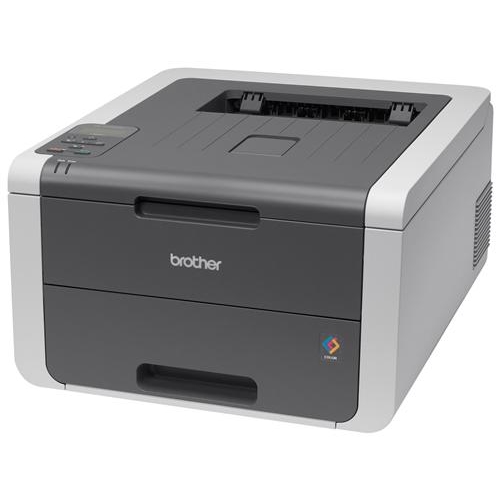

Optional Color Laser Brother Printer
Plus C-20W Electronic CaptureBoard
- 4 x Markers (Black, Red, Blue, Green)
- Eraser
- AC Power Adapter
- 9' (2.7 m) USB Cable
- Wall Mounting Brackets
- User's Manual
- Installation Compact Disk
- Stand NOT included - Please Check Accessories Tab if required.
- Printer NOT included - Please Check compatible printer list from Supported Printers List
- Wall mount printer tray NOT included - Please Check Accessories Tab if required.
Plus C-20W Electronic CaptureBoard WARRANTY
- Initial Year Warranty for any manufacturing defects starting from date of purchase.
- 7 Years GUARANTEE for provision of spare parts and servicing from date of purchase.
.
